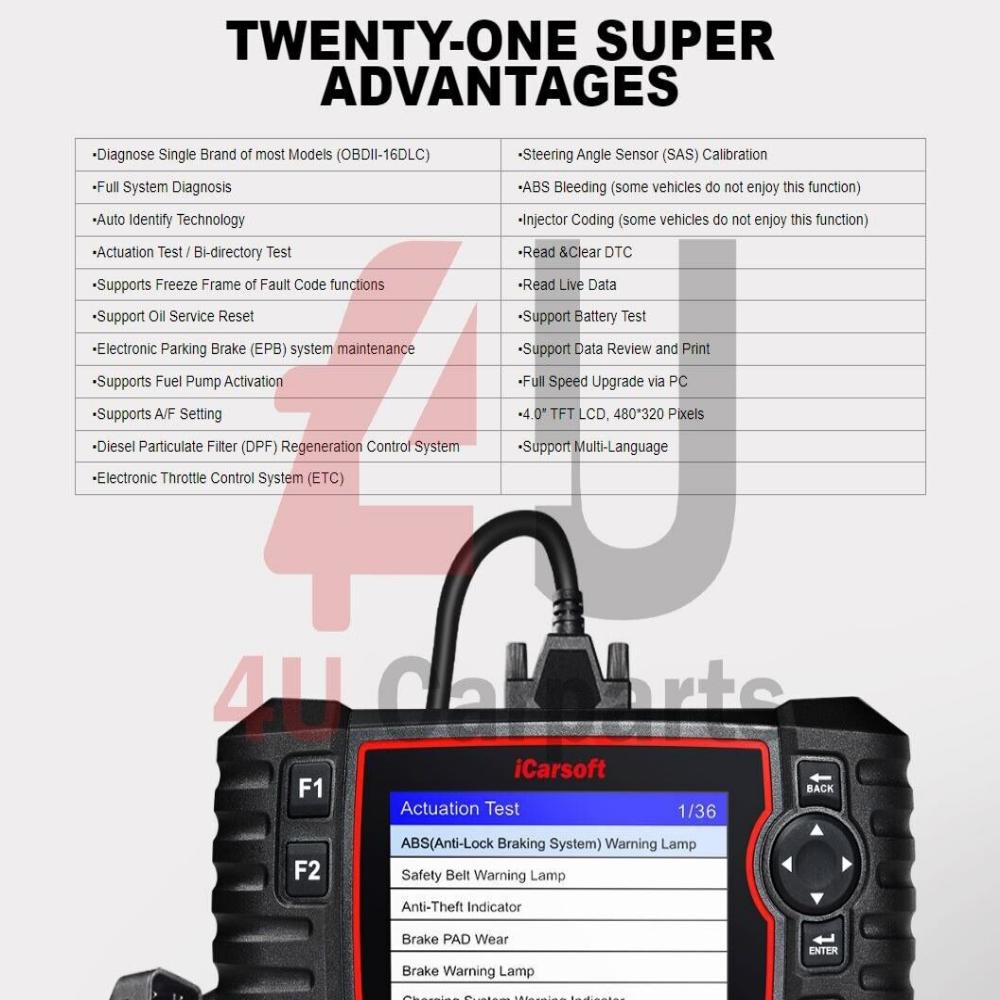

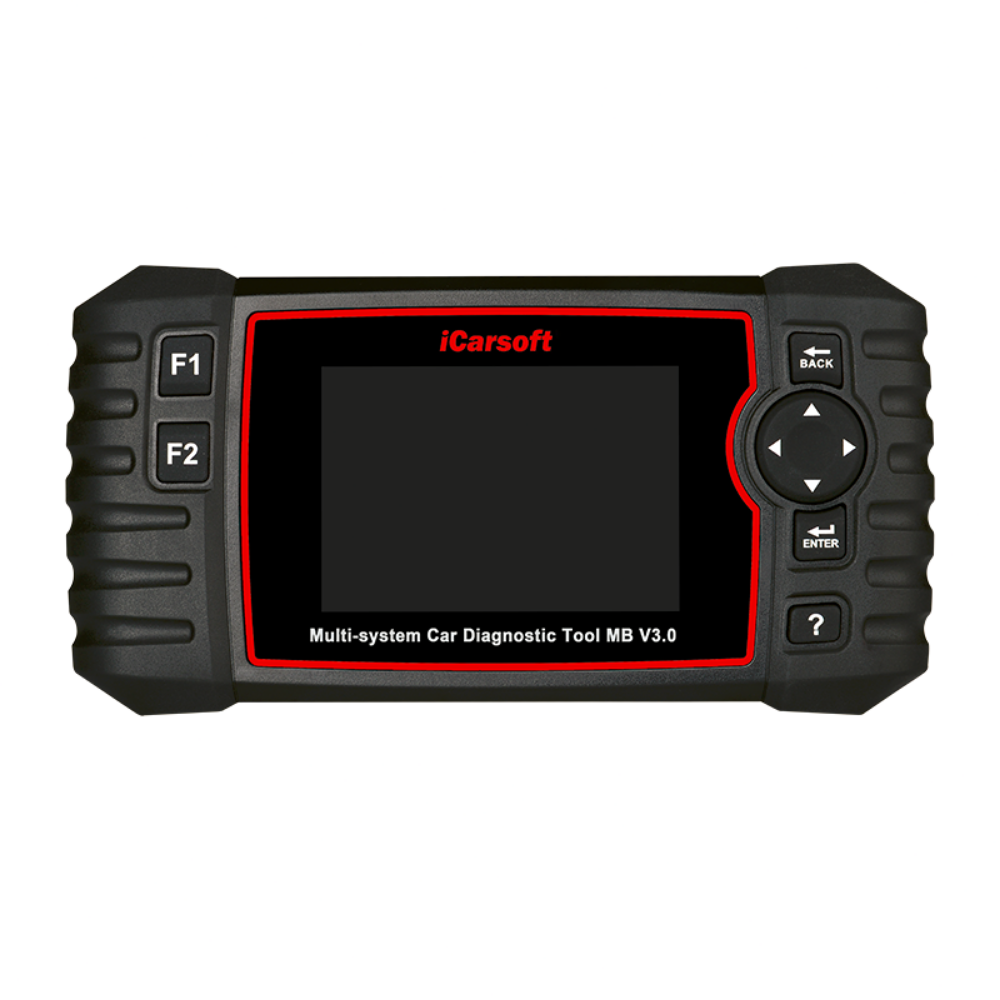

1. iCarsoft MB V3.0.can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.
2.Support OBDII/EOBD ten modes of operation.
3.Full ECU Diagnosis.
4.Applies to the single brand of most of the models which equipment with OBDII-16DLC.
5.Easy to use with silicone keys.

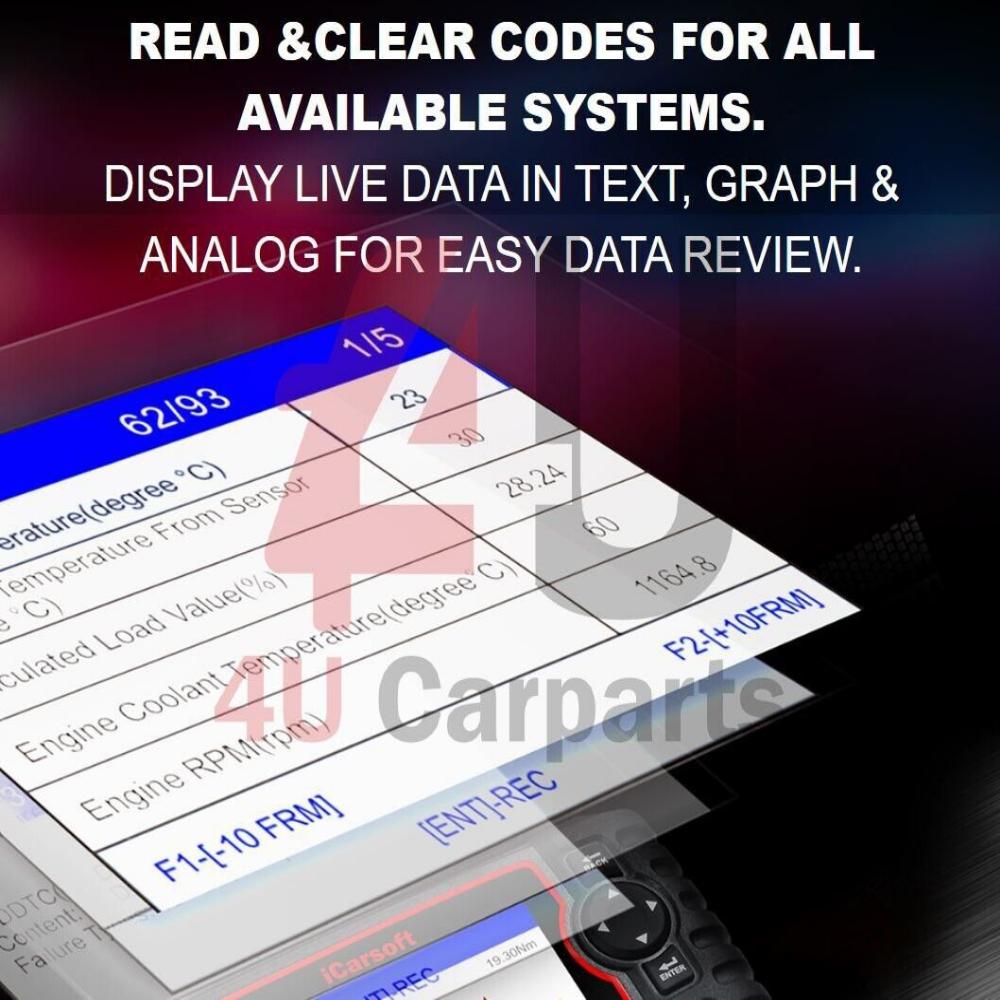

6.Display live data in text, graph & analog for easy data review.
7.Auto VIN technology can automatically identify model and year information in no time.

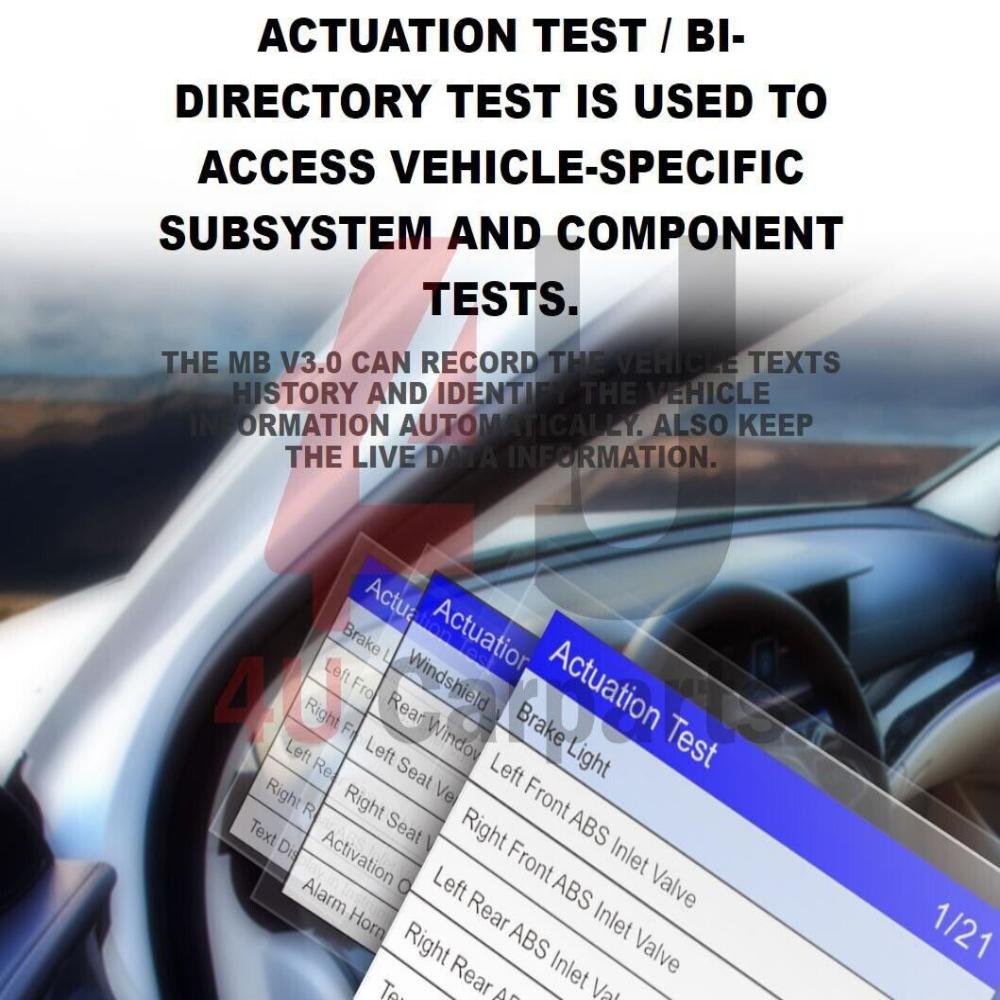

8.Actuation Test / Bi-directory Test is used to access vehicle-specific subsystem and component tests.
9.Support freeze frame of fault code functions.

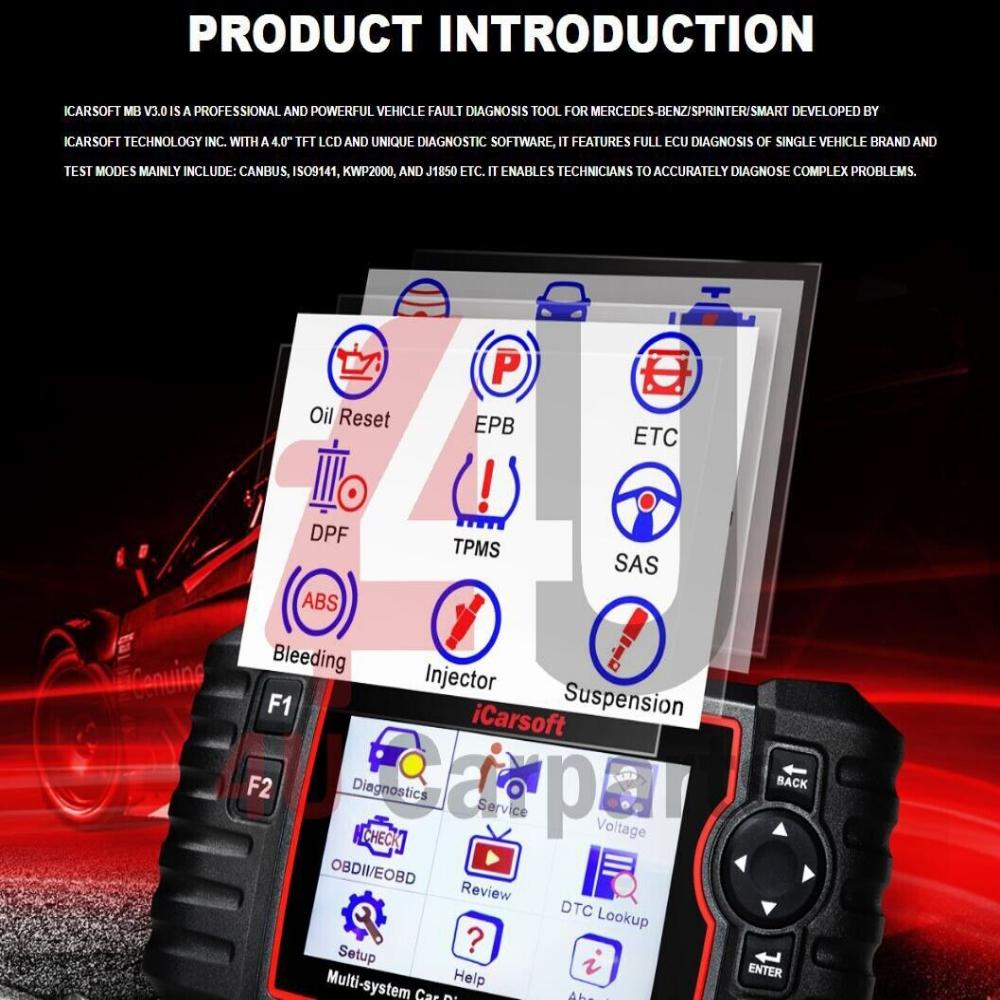

10.Oil Light/Service Reset: Support service lamp reset, reset service mileage and service intervals.
11.Electronic Parking Brake (EPB): System maintenance deactivates and reactivates the EPB system for replacement and initialization.
12.Fuel Pump activation function, activate it when replace a new one.
13.Air Filter Self-learning process after replacing the air filter.
14.Diesel Particulate Filter (DPF): Regeneration control system, requests the DPF regeneration process while DPF blockage and turn off the DPF indicator.
15.Electronic Throttle Control system (ETC): Relearns the throttle valve control value while clear or replaces the throttle value.
16.Steering Angle Sensor (SAS) calibration: Calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.
17.ABS Bleeding: Release the air to restore ABS brake sensitivity, or relearn while ABS replaced.
18.Injector coding: Relearn the injector control parameter while the injector renewed or replaced.
19.BCM (Body stability), this function supports routine maintenance of DSC modules, for example, reset or delete the adaptation values, start-up the unit.
20.ECM (Engine), this function supports routine maintenance of engine modules, for example, reset or delete the adaptation values, calculate fuel consumption.
21.TCM (Tans adaption), this function supports routine maintenance of transmission modules, for example, reset adaptation values, adjust the oil level.
22.Air Suspension: Try reset electronic suspension air ride with the message system close all doors flip through message system go to suspension reset or off.
23.Support TPMS programming service: It allows you to look up the tire sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.
24.ACS (Air Conditioner), this function supports routine maintenance of air condition modules, for example, air conditioning system adaption reset, rese air conditioning compressor, run in air conditioning compressor, stepper motor initialization.
25.Head Lamp is about the headlamp maintenance, maintenance and other related operations (Including AFS setting), and then perform this function for calibration.
26.Seat, after repairing or replacing the window lift moto, it is necessary to perform relevant functions for calibration.
27.The Print Data function allows you printing out the diagnostic data recorded by the scan tool or customized test reports.
28.Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.
29.DTC library to look up when user is operating this tool.
30.Upgrade via Computer.
31.Multi-language: English, German, Dutch, Spanish, French. (More languages will be added in the future.)
Note!
*Certain functions may be limited from the vehicle manufacturer due to the requirement of a special factory access code.
*This scan tool covers 20 years models, so some functions may not be available on all years /models.
*We reserve the rights to make any change to this description without notice.
Coverage Mercedes Benz
Coverage for Smart
Coverage for Sprinter

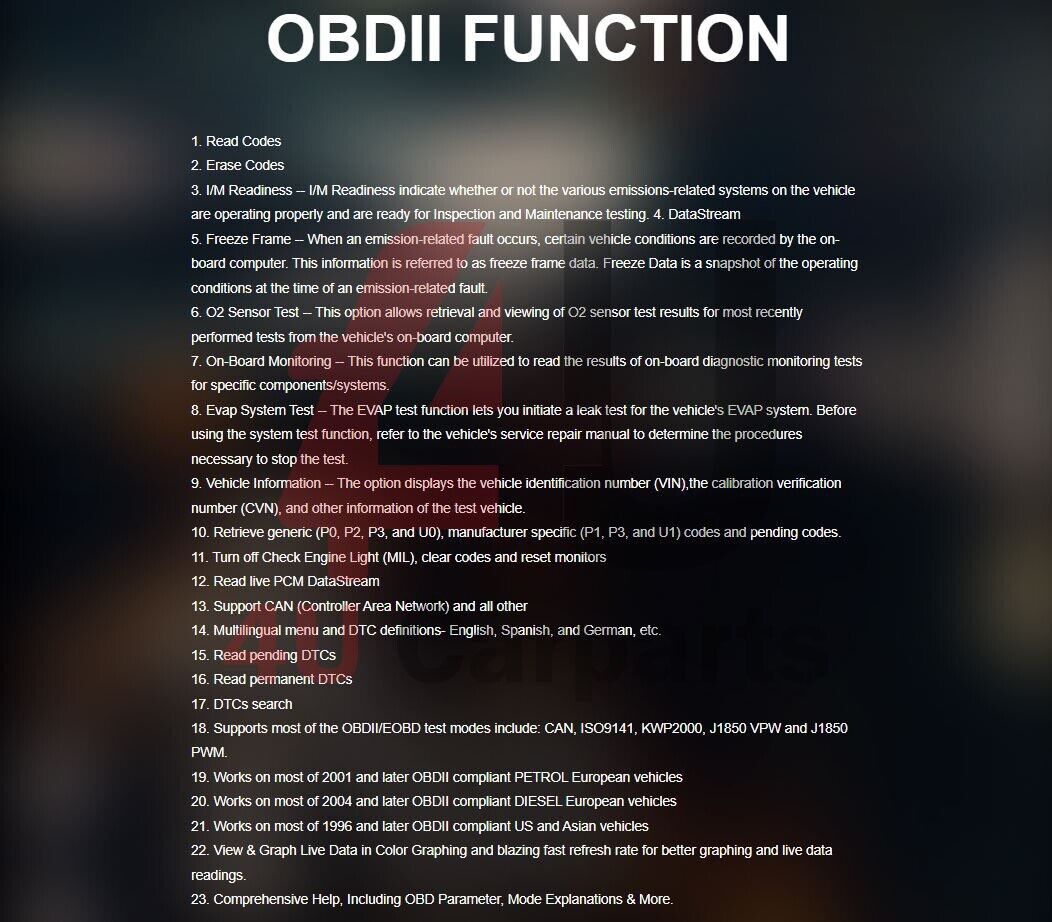

OBDII FUNCTION
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing. 4. DataStream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN),the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes.
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.
19. Works on most of 2001 and later OBDII compliant PETROL European vehicles
20. Works on most of 2004 and later OBDII compliant DIESEL European vehicles
21. Works on most of 1996 and later OBDII compliant US and Asian vehicles
22. View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.
23. Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

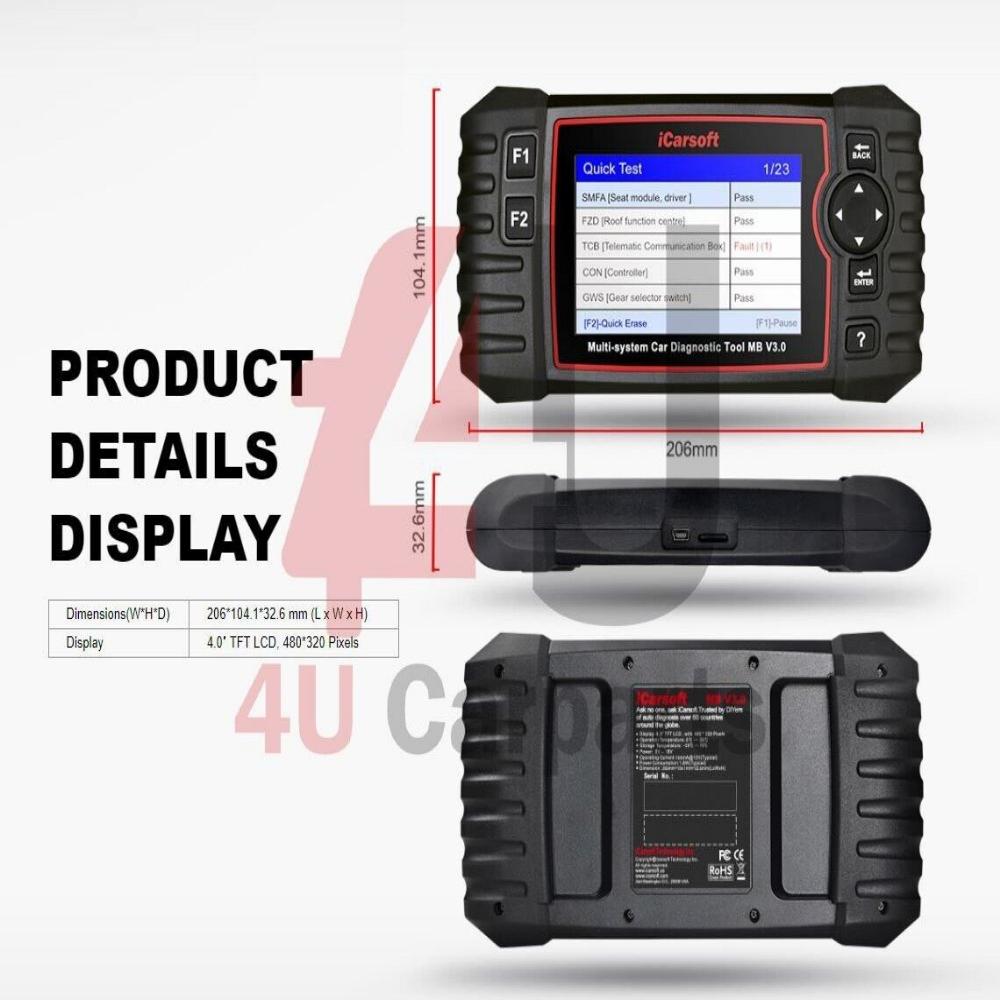

PRODUCT DETAILS DISPLAY
|
Dimensions(W*H*D)
206*104.1*32.6 mm (L x W x H)
|
|
Display
4.0″ TFT LCD, 480*320 Pixels
|

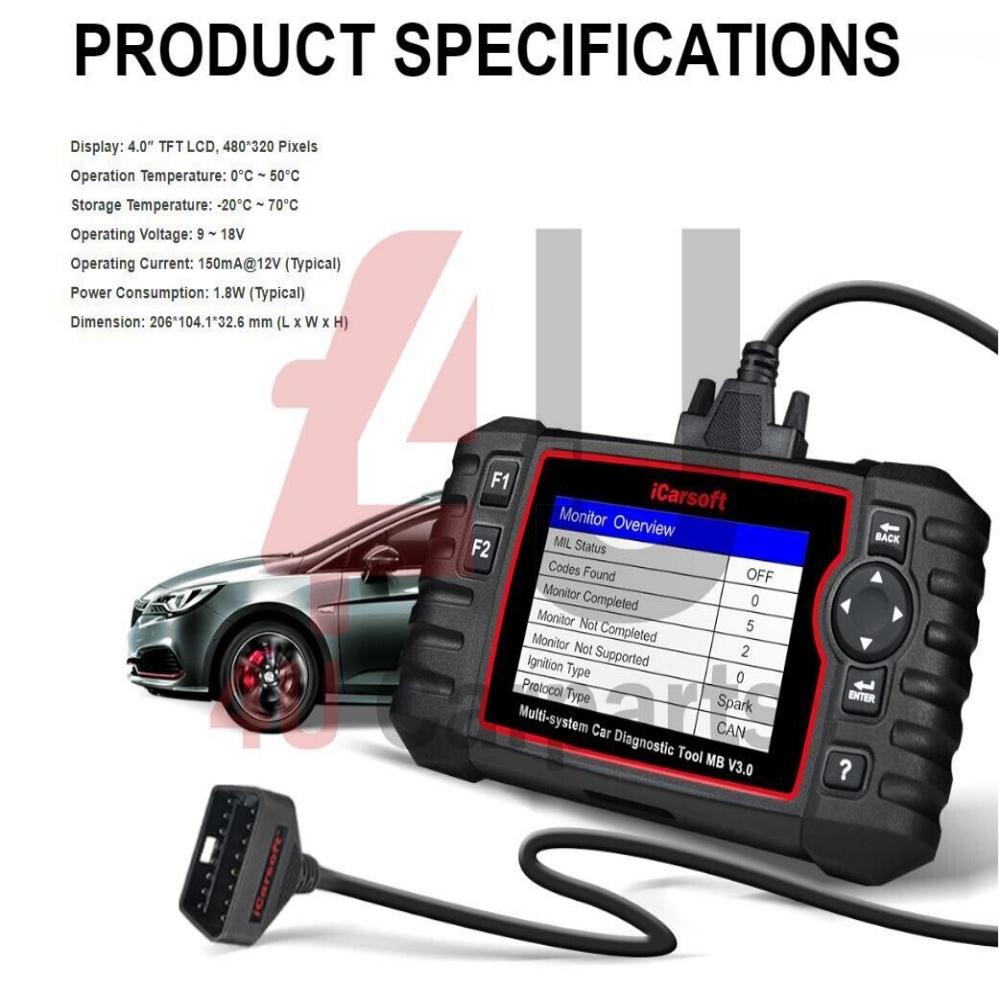

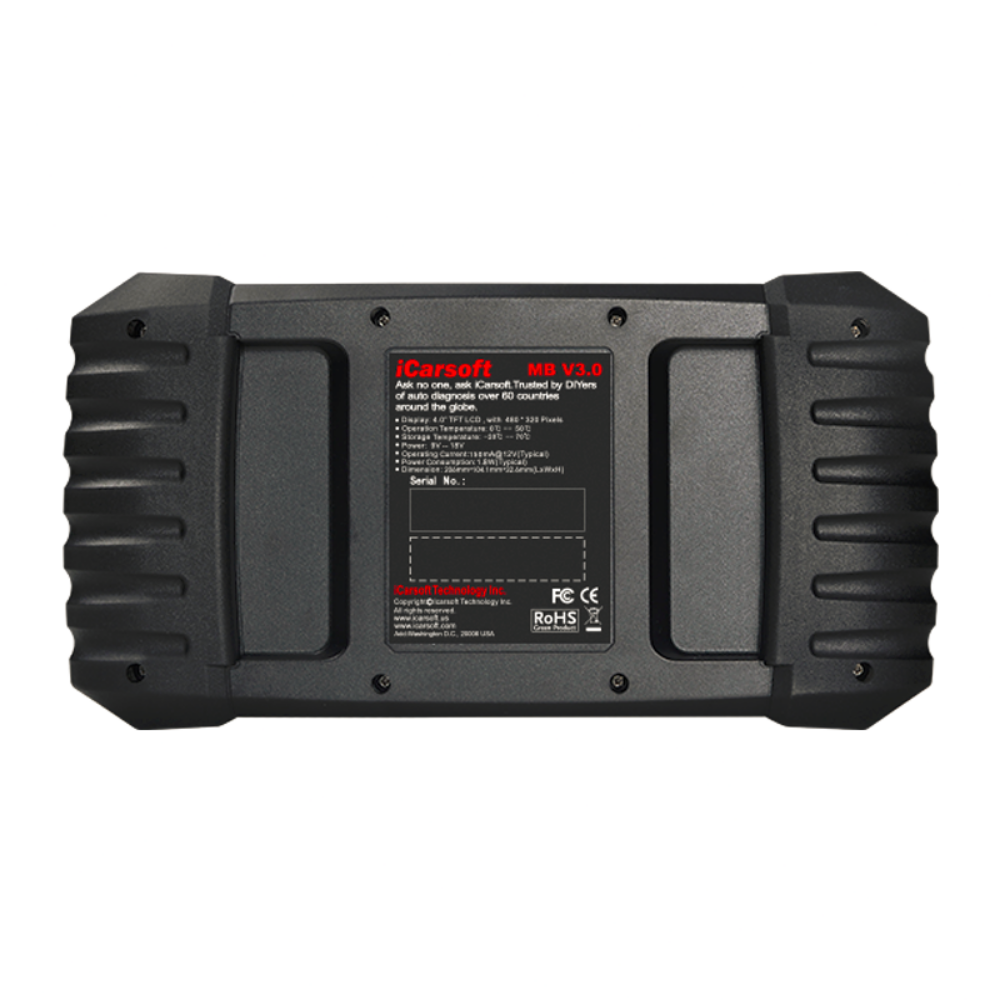

PRODUCT SPECIFICATIONS
- Display: 4.0″ TFT LCD, 480*320 Pixels
- Operation Temperature: 0°C ~ 50°C
- Storage Temperature: -20°C ~ 70°C
- Operating Voltage: 9 ~ 18V
- Operating Current: 150mA@12V (Typical)
- Power Consumption: 1.8W (Typical)
- Dimension: 206*104.1*32.6 mm (L x W x H)
CONTENTS
